A guidebook mod for Minecraft NeoForge, designed to provide in-game guides for other mods. Ageratum offers rich Markdown rendering, i18n localization, and an extensible custom syntax/component system.

Documentation

Features

Core Markdown Support

✅ Block Elements

- ATX headings (`# ~ ######`) and Setext headings (underline style) - Paragraphs and line breaks - Ordered, unordered, and task lists (multi-level nesting) - Blockquotes (multi-level nesting) - Fenced code blocks (backticks and tildes) and indented code blocks - Horizontal rules - Tables with alignment settings - Images (namespace-local references)

✅ Inline Elements

- Hover and Click Events, *italic*, ~~strikethrough~~ - Inline code spans (multi-backtick support) - Hover and Click Events and autolinks - Escape character support - Custom color tags - Hover and Click Events (`<hover>` and `<click>` tags)

✅ Advanced Features

- Reference link definitions and reference link syntax - Automatic link expansion - Code block line numbers - Table column alignment (left/center/right)

Internationalization (i18n)

- Documents organized by `ageratum/<language_code>/` (e.g., `en_us`, `zh_cn`) - Default fallback to `en_us` if localized version missing - Full support for multi-byte characters (Chinese, Japanese, etc.)

Extension Syntax

Two block-level extension syntaxes for custom components:

1. Colon Syntax

```markdown ::: info This is an info box. :::

::: tip This is a tip. :::

::: warning This is a warning. :::

::: danger This is a danger warning. ::: ```

2. Tag Syntax

```markdown <namespace:component key="value" param=123> Block content supports Markdown syntax. </namespace:component>

<namespace:component/> Self-closing form without content. ```

Namespace can be omitted (defaults to `ageratum:`).

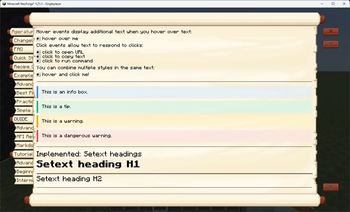

Built-in Extension Components

- `ageratum:info` - Blue info box - `ageratum:tip` - Green tip box - `ageratum:warning` - Orange warning box - `ageratum:danger` - Red danger box

Hover and Click Events

Support interactive text that allows players to hover for tooltips or click to perform actions.

Hover Events (`<hover>`)

Display tooltip text when hovering over text:

```markdown <hover type="SHOW_TEXT" data="This is the tooltip">Hover over me</hover> ```

Supported Types:

- `SHOW_TEXT` - Display plain text tooltip (`data` is the tooltip content)

Click Events (`<click>`)

Execute an action when clicking on text:

```markdown <click type="OPEN_URL" data="https://example.com">Click to open link</click> <click type="COPY_TO_CLIPBOARD" data="Text to copy">Click to copy</click> <click type="SUGGEST_COMMAND" data="/say hello">Click to suggest command</click> ```

Supported Types:

- `OPEN_URL` - Open a URL (`data` is the complete URL) - `COPY_TO_CLIPBOARD` - Copy text to clipboard (`data` is the text to copy) - `SUGGEST_COMMAND` - Suggest a command in chat (`data` is the command text)

Combining Styles

You can combine multiple styles in the same text:

```markdown <hover type="SHOW_TEXT" data="This is a tooltip"><click type="OPEN_URL" data="https://example.com">Click and hover on me!</click></hover> ```

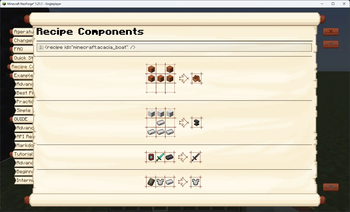

Recipe Component (`<recipe/>`)

Use the `recipe` extension to render recipes directly inside Markdown documents:

```markdown <recipe id="minecraft:acacia_boat"/> ```

- `id`: required, target recipe `ResourceLocation` - Built-in support: `RecipeType.CRAFTING` (crafting table recipes) - Rendering behavior: each input slot displays the first candidate item from its `Ingredient` - Fallback behavior: if client level is unavailable, recipe is missing, or no factory matches, the component renders with no visible height

You can register additional recipe component factories through `AgeratumRegistries.RECIPE_COMPONENT_FACTORIES`:

```java public static final DeferredHolder<MDRecipeComponent.RecipeComponentFactory<?>, MDRecipeComponent.RecipeComponentFactory<?>> SMELTING = AgeratumRegistries.RECIPE_COMPONENT_FACTORIES.register( "smelting", () -> MDRecipeComponent.RecipeComponentFactory.create(RecipeType.SMELTING, MDSmeltingRecipeComponent::new) ); ```

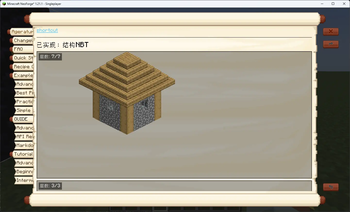

Structure NBT Component (`<structure/>`)

Use the structure extension to render a summary, top-down block preview, and bounded NBT tree for `.nbt` structure files directly inside documents:

```markdown <structure id="minecraft:village/plains/houses/plains_small_house_1"/>

<structure id="./test.nbt"/> ```

- `id` / `path`: required, target structure file `ResourceLocation` - `maxDepth`: optional, maximum expansion depth, default `2` - `maxEntries`: optional, maximum number of keys/list entries shown per level, default `12` - Relative paths are supported and resolved against the current document directory, including `.nbt` files placed next to the Markdown document inside the resource pack; in preview mode the matching file is loaded from `run/ageratum_review/` - The component first shows structure metadata such as size, palette, block count, and entity count, then renders a top-down block preview followed by a depth-limited NBT tree - Hovering a block in the preview shows its block ID, structure coordinates, palette index, and whether it carries block-entity NBT

Preloading & Caching

- Automatically scans and pre-parses Markdown documents to `MDComponent` lists on resource load - Opens cached components immediately without parsing delay - Auto-refreshes cache on resource reload

Cross-side Guide Opening

```java // Client: open directly Ageratum.openGuide(ResourceLocation location);

// Server: notify client via network packet Ageratum.

openGuide(ResourceLocation location); ```

Project Structure

Directory Layout

``` src/main/java/dev/anvilcraft/resource/ageratum/ ├── Ageratum.java // Main mod class + command registration ├── GuideDocumentLoader.java // Document loading utils ├── GuideDocumentCache.java // Preload cache & reload listener │ ├── client/ │ ├── AgeratumClient.java // Client hooks (reserved) │ ├── gui/ │ │ └── GuideScreen.java // Guide reading GUI │ └── feat/markdown/ │ ├── MarkdownParser.java // Markdown block-level parser │ ├── BuiltinExtensionComponents.java // Built-in extension registration │ ├── BlockExtensionState.java // Block extension state machine │ ├── SelfClosingBlockExtensionState.java │ ├── ExtensionParamParser.java // Parameter parsing utility │ ├── MDExtensionContext.java // Extension execution context │ ├── MDExtensionComponentFactory.java // Extension factory interface │ └── component/ │ ├── MDComponent.java // Base class + inline parsing │ ├── MDTextComponent.java // Plain text paragraphs │ ├── MDHeaderComponent.java // Headings │ ├── MDCodeBlockComponent.java // Code blocks │ ├── MDListComponent.java // Lists (inc. task lists) │ ├── MDQuoteComponent.java // Blockquotes │ ├── MDTableComponent.java // Tables │ ├── MDImageComponent.java // Images │ ├── MDHorizontalRuleComponent.java │ └── MDNoticeBoxComponent.java // Notice box container │ └── network/ ├── AgeratumNetwork.java // Network registration & dispatch └── OpenGuidePayload.java // Guide open network packet ```

Design Principles

- Extensibility: Each class handles a single responsibility - Extensibility: Longest files ~400 lines, all inner classes extracted - Extensibility: Chinese Javadoc for all public APIs, inline comments for complex logic - Extensibility: Register custom block types via `registerExtensionComponent()`

Usage Guide

Players

Open guides with client command:

``` /ageratum <namespace> [file]

Examples: /ageratum ageratum # Opens ageratum:en_us/index.md /ageratum mymod guide # Opens mymod:en_us/guide.md /ageratum mymod zh_cn/tutorial # Opens mymod:zh_cn/tutorial.md ```

Tab completion supported for namespaces and file names.

Developers

Register Custom Extension

Use registration methods described in NeoForge docs:

1. `DeferredRegister` (recommended) 2. `RegisterEvent` (advanced usage)

```java public static final DeferredRegister<MDExtensionComponentFactory> EXT_COMPONENT_FACTORIES = AgeratumRegistries.createExtensionComponentFactoryRegister("your_modid");

public static final DeferredHolder<MDExtensionComponentFactory, MDExtensionComponentFactory> CUSTOM = EXT_COMPONENT_FACTORIES.register( "custom", () -> context -> new MyComponent(context.renderedContent(), context.params()) );

// In your mod constructor EXT_COMPONENT_FACTORIES.

register(modEventBus); ```

Register Custom Inline Style Parser

Inline style parsers are registered through `INLINE_STYLE_PARSER_REGISTRY_KEY`. `MDComponent` queries this registry and resolves matches by position + parser priority.

```java package com.example.mymod.client.markdown;

import dev.anvilcraft.resource.ageratum.client.feat.markdown.component.MDInlineStyleParser; import dev.anvilcraft.resource.ageratum.client.registries.AgeratumRegistries; import net.minecraft.network.chat.Style; import net.neoforged.neoforge.registries.DeferredHolder; import net.neoforged.neoforge.registries.DeferredRegister;

import java.util.regex.Pattern;

public final class MyInlineStyleParsers { // Use your own modid here, not ageratum public static final DeferredRegister<MDInlineStyleParser> INLINE_STYLE_PARSERS = DeferredRegister.create( AgeratumRegistries.INLINE_STYLE_PARSER_REGISTRY_KEY, "mymod" );

// Example tag: <rainbow>text</rainbow> public static final DeferredHolder<MDInlineStyleParser, MDInlineStyleParser> RAINBOW = INLINE_STYLE_PARSERS.register( "rainbow", () -> MDInlineStyleParser.create( 100, // smaller value = higher precedence at same position Pattern.compile("<rainbow>"), "</rainbow>", (Style parentStyle, java.util.regex.Matcher matcher) -> parentStyle.withColor(0xFF55FF) ) );

private MyInlineStyleParsers() { } } ```

Register it in your client init:

```java public class MyModClient { public MyModClient(IEventBus modEventBus) { MyInlineStyleParsers.INLINE_STYLE_PARSERS.register(modEventBus); } } ```

Markdown usage:

```markdown normal text <rainbow>colored text</rainbow> normal text ```

See full guide: `docs/inline-style-parser-example.en.md`.

Add Documentation

Create in resource pack:

``` assets/<namespace>/ageratum/<language>/index.md assets/<namespace>/ageratum/en_us/index.md assets/<namespace>/ageratum/zh_cn/index.md ```

License

* Code unless otherwise stated default to our LICENSE file(LGPL-3.0) * Non-Code assets (Located here) go by our ASSET_LICENSE file(ARR)
